The Black Ice® Nemesis® 140GTS® XFlow steps up to the challenge for high performance for single-fan stealth form factor PC radiators. Featuring the Black Ice® Nemesis® GTS® XFlow core platform, this single 140mm fan radiator is able to provide enhance coolant flow and even better performance under low airflow conditions. This gives PC performance enthusiasts more performance for less noise in the same single-fan form factor. Now featuring a vectored cross-flow tank design, overall system flow rates are enhanced for systems using impingement type waterblocks.

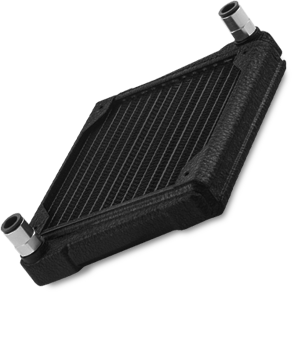

Nemesis 140GTS XF

  • 140 mm x 1 fan slim form factor one-pass radiator
  • 186mm x 153mm x 29.6mm (L x W x H)
  • 16 FPI 25 Micron Copper Fins
  • Now optimized for sub-800 rpm ultra-stealth fans
  • Supercruise optimizations for scalable performance with higher speed fans
  • 15% more tubing area in the same Black Ice® GTS 140 XFLOW form factor
  • Increased internal coolant flow rates
  • Standard G 1/4″ inlet/outlet fittings
  • Standard M4 mounting threads
  • Custom Dark Matter high quality finish
  • Fully ROHS Compliant
  • 100% Made from conflict-free materials
  • Industry standard Black Ice® quality
  • Lifetime warranty against manufacturing defects*

* Limited warranty information: www.hardwarelabs.com/warranty
** radiator shown with optional push fittings

Recommended Capacity Stealth Supercruise Multi-core CPU GPU SLI/Crossfire Fans
120GTS XF 350W
1 1 X 120mm
240GTS XF 750W
TRIPLE 2 X 120mm
360GTS XF 12000W
QUAD 3 X 120mm
480GTS XF 17000W
QUAD 4 X 120mm
140GTS XF 370W
1 1 X 140mm
280GTS XF 800W
TRIPLE 2 X 140mm
420GTS XF 1350W
QUAD 3 X 140mm
560GTS XF 1600W
QUAD 4 X 140mm
GTS180x1 XF 700W
DUAL 4 X 180mm
GT180x2 XF 1400W
TRIPPLE 4 X 180mm
GTS180x3 XF 2100W
QUAD 4 X 180mm

SLI and Crossfire names are trademarks™ or registered® trademarks of their respective holders.
