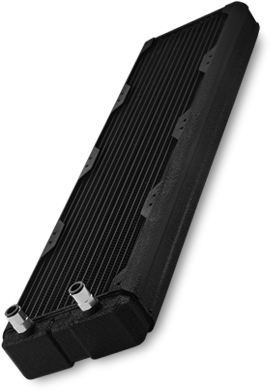

The Black Ice® Nemesis® 560 GTX® is the quad 140mm fan and largest implementation of the Nemesis® series of radiators. Featuring an enhanced flow GTX® core with Supercruise optimizations, we give the hardcore PC case modder all that is needed to execute a multi-CPU/multi-GPU setup while maintaining whisper quiet operations with better flow and significantly enhanced scalability.
- 140 mm x 4 fan Xtreme form factor two-pass radiator

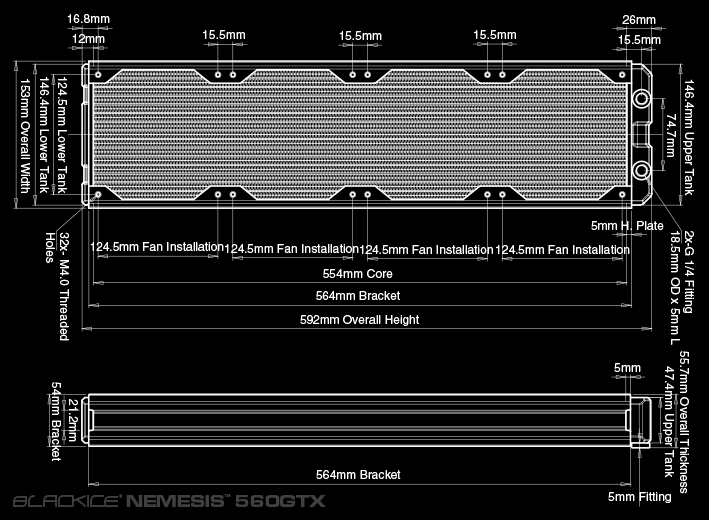

- 592mm x 153mm x 54mm (L x W x H)
- 16 FPI 25 Micron Copper Fins
- Now optimized for sub-800 rpm ultra-stealth fans
- Supercruise optimizations for scalable performance with higher speed fans
- 15% more tubing area in the same Black Ice® GTX™ 560 form factor
- Increased internal coolant flow rates
- Standard G 1/4″ inlet/outlet fittings
- Standard M4 mounting threads
- Custom Dark Matter™ high quality finish
- Fully ROHS Compliant
- 100% Made from conflict-free materials
- Industry standard Black Ice® quality
- Lifetime warranty against manufacturing defects*
* Limited warranty information: www.hardwarelabs.com/warranty
** radiator shown with optional push fittings
| Recommended | Capacity | Stealth | Supercruise | Multi-core CPU | GPU SLI/Crossfire | Fans |
|---|---|---|---|---|---|---|
| 120GTS | 350W | 1 | 1 X 120mm | |||
| 240GTS | 750W | TRIPLE | 2 X 120mm | |||
| 360GTS | 1200W | QUAD | 3 X 120mm | |||
| 480GTS | 1500W | QUAD | 4 X 120mm | |||
| 140GTS | 370W | 1 | 1 X 140mm | |||
| 280GTS | 800W | TRIPLE | 2 X 140mm | |||
| 420GTS | 1350W | QUAD | 3 X 140mm | |||
| 560GTS | 1600W | QUAD | 4 X 140mm | |||
| GTS180x1 | 720W | DUAL | 4 X 180mm | |||
| GT180x2 | 1450W | TRIPPLE | 4 X 180mm | |||
| GTS180x3 | 2200W | QUAD | 4 X 180mm |
SLI and Crossfire names are trademarks™ or registered® trademarks of their respective holders.
